SUNMI® L3 Configuration

Kevin U
  • Updated

About the SUNMI® L3

The SUNMI® L3 is a handheld Android terminal for use for use with the MealSuite POS and the Touch app.

Initial Setup Steps

  1. Open the Scalefusion dashboard and access the QR Code Configuration for Android (refer to Scalefusion proprietary documentation for these step if needed: https://help.scalefusion.com/docs/enrolling-android-devices-using-qr-code).

  2. Power on the SUNMI L3.

  3. On the Hi there screen, tap the screen 6 times, which activates the onscreen camera for you to scan the QR code on the Scalefusion dashboard.

  4. The Wi-Fi screen appears. Connect to the network wifi.

  5. The Getting your device ready screen appears.

  6. The This device belongs to your organization screen appears. Tap Next.

  7. The Getting ready for work setup screen appears.

  8. The Let's set up your work device screen appears. Click Accept & Continue.

  9. The Permissions screen appears (screenshot below). Enable the permissions listed below. When you enable a permission, a secondary screen will appear. From the secondary screen, enable Scalefusion for the permission, and go through any additional steps that appear.
    • Activate Device Admin
    • Allow Usage Access
    • Enable App Notifications
    • Enable Overlay Permission
    • Enable Write System Settings
    • Battery optimisation

  10. After the permissions in step 11 are enabled, tap Next.

  11. The Google Services screen appears. Tap Accept.

  12. The Scalefusion screen appears displaying the MealSuite POS and MealSuite Touch app shortcuts.

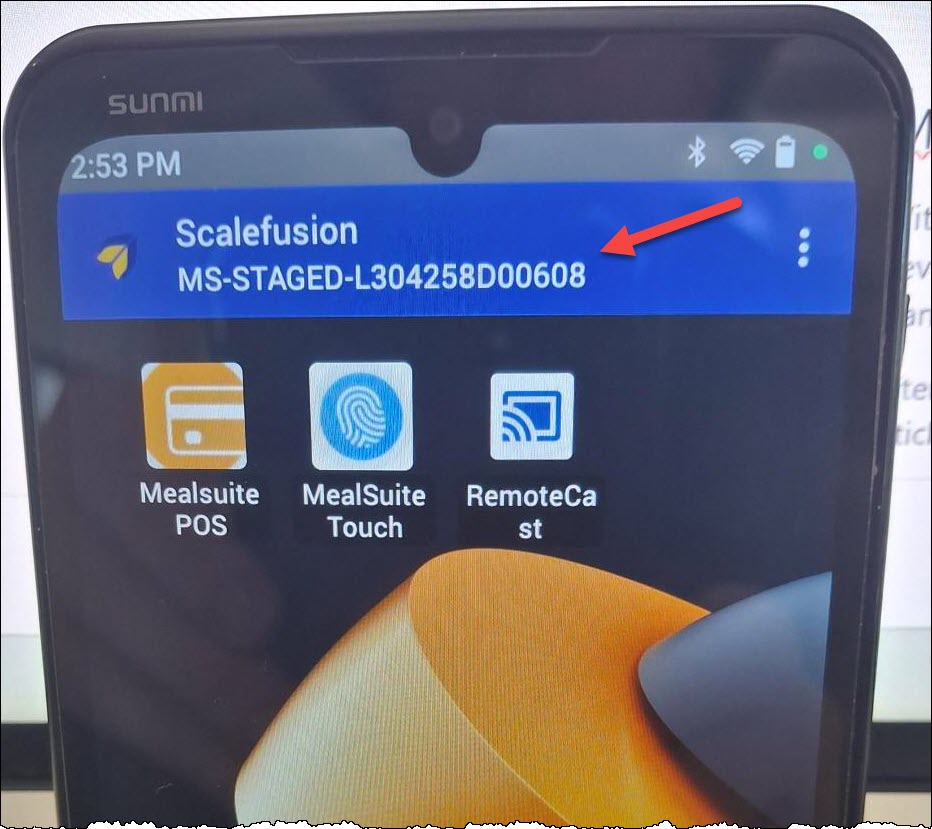

  13. At the top of the screen is a MS-STAGED-XXXXX code specific to the device (the code is the serial number of the device). Copy this code, and contact MealSuite Support with this code so that the Support team can complete the configuration in Scalefusion to activate the device.


MealSuite Support: Add SUNMI L3 to Device Group

With the device in staging status and with the serial number in-hand, add the device to the appropriate customer device group in Scalefusion. Note that if the customer device group does not exist, then create it as part of the standard steps in Scalefusion (part of creating a group is assigning the appropriate device profile),

After the device is added to the group, then change the display name of the device; see the following internal article: Standard Scalefusion Device Naming Guide. The device name is displayed at the top of the device.
