MicroTouch™ Monitor Configuration

Kevin U
  • Updated

About the MicroTouch™ Monitor

The MicroTouch™ is a countertop monitor for use with the MealSuite POS and the Touch app.


Initial Setup Steps

  1. Open the Scalefusion dashboard and access the QR Code Configuration for Android (refer to Scalefusion proprietary documentation for these step if needed: https://help.scalefusion.com/docs/enrolling-android-devices-using-qr-code).

  2. Print the QR code on piece of paper.

  3. Power on the MicroTouch monitor.

  4. On the Hi there screen, tap the screen 6 times, which activates the onscreen camera for you to scan the QR code.

  5. Hold the QR code in front of the onscreen camera to scan the QR code.

  6. The Wi-Fi screen appears. Connect to the network wifi.

  7. The Getting your device ready screen appears.

  8. The This device belongs to your organization screen appears. Tap Next.

  9. The Getting ready for work setup screen appears.

  10. The Let's set up your work device screen appears. Click Accept & Continue.

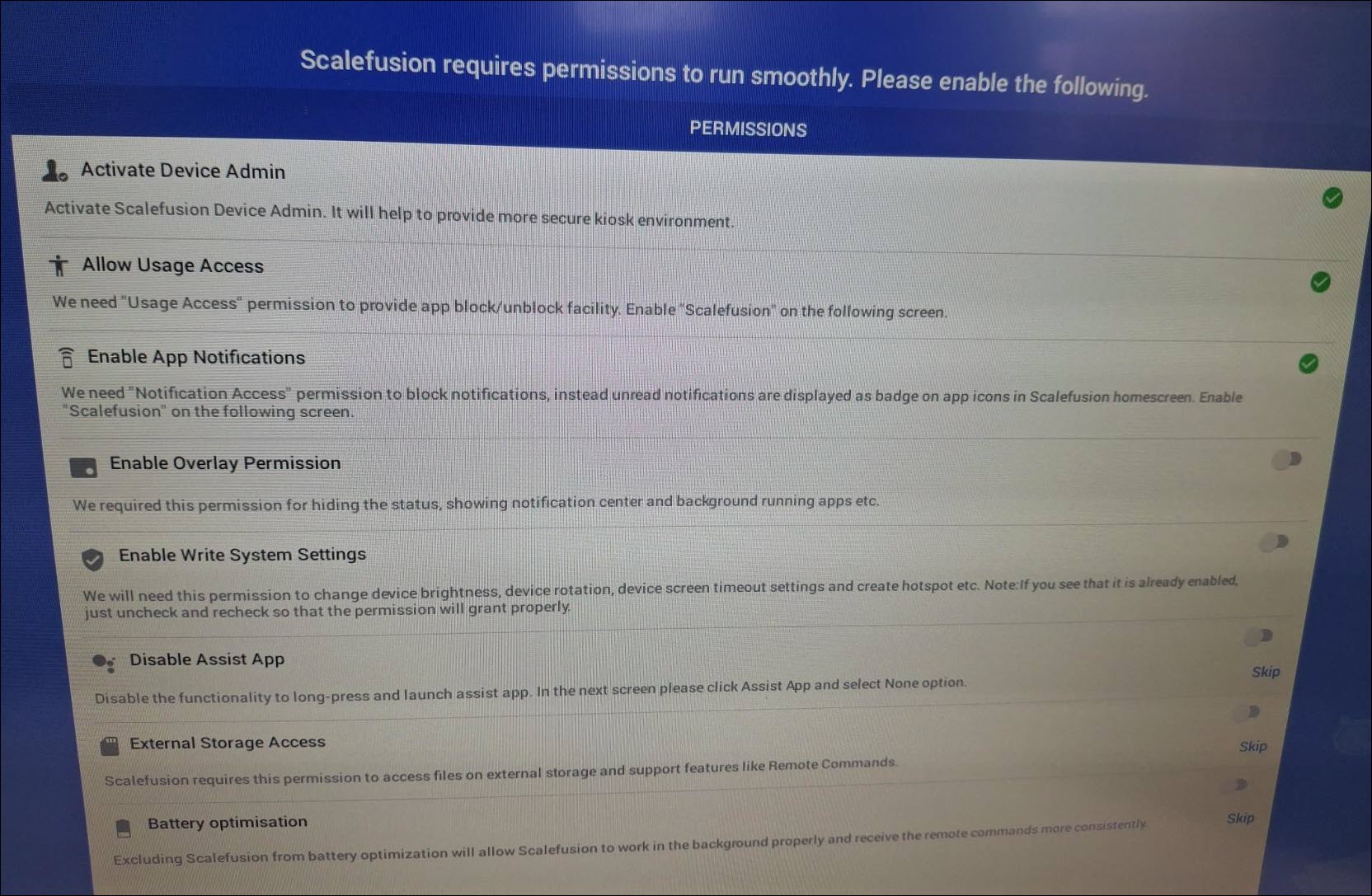

  11. The Permissions screen appears (screenshot below). Enable the permissions listed below. When you enable a permission, a secondary screen will appear. From the secondary screen, enable Scalefusion for the permission, and go through any additional steps that appear.
    • Activate Device Admin
    • Allow Usage Access
    • Enable App Notifications
    • Enable Overlay Permission
    • Enable Write System Settings
    • Battery optimisation


  12. After the permissions in step 11 are enabled, tap Next.

  13. The Google Services screen appears. Tap Accept.

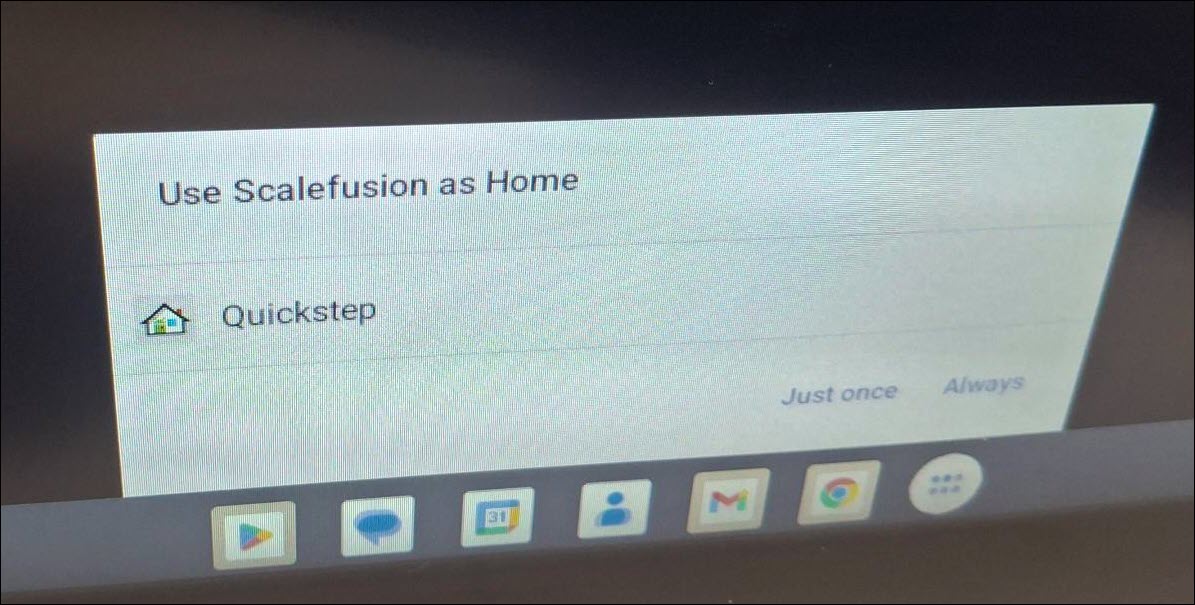

  14. The home screen appears with the Use Scalefusion as Home pop-up at the bottom. Tap Always to this pop-up.


  15. The Scalefusion screen appears displaying the MealSuite POS and MealSuite Touch app shortcuts.

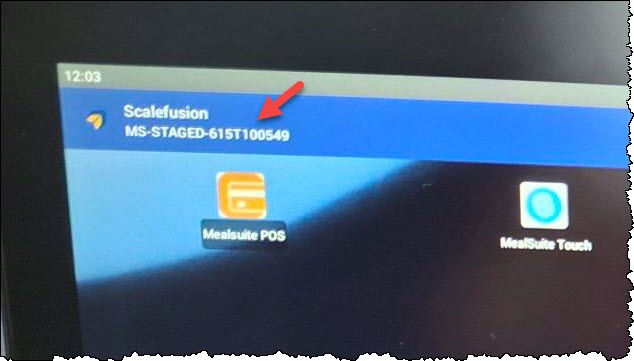

  16. At the top left of the screen is a MS-STAGED-XXXXX code specific to the monitor (the number is the serial number of the monitor). Copy this code, and contact MealSuite Support with this number so that the Support team can complete the configuration in Scalefusion to activate the monitor.


MealSuite Support: Add MicroTouch Monitor to Device Group

With the monitor in staging status and with the serial number in-hand, add the monitor to the appropriate customer device group in Scalefusion. Note that if the customer device group does not exist, then create it as part of the standard steps in Scalefusion (part of creating a group is assigning the appropriate device profile),

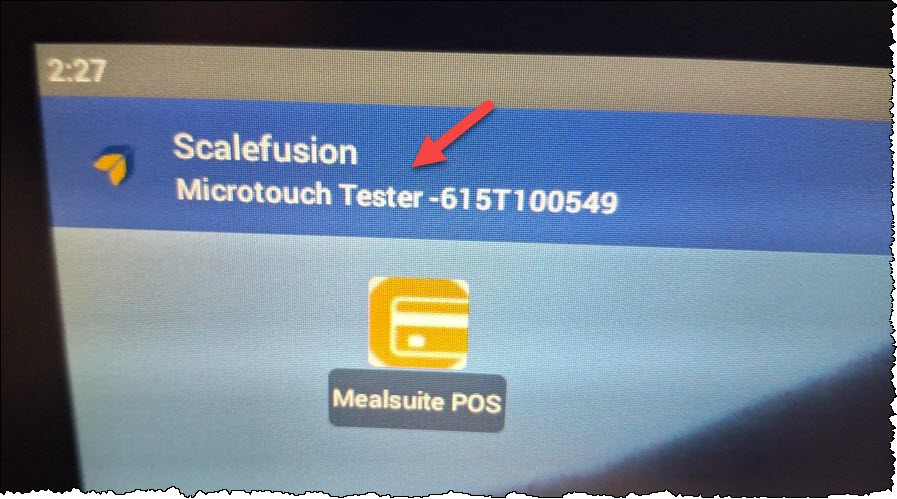

After the device is added to the group, then change the display name of the device; see the following internal article: Standard Scalefusion Device Naming Guide. The device name is displayed at the top left of monitor.
