The Honeywell® Voyager 1200g Barcode Scanner
The Honeywell® Voyager 1200g barcode scanner scans linear barcodes of products. The scanner can also be used to scan identification badges with linear barcodes.
(Image courtesy of Honeywell®)
Installing
Plug the USB cable into a USB port on the touchscreen or USB hub. Warning! Do not plug the USB cable into the printer!
Enabling UPC-E Support
The default configuration of the Honeywell® Voyager 1200g barcode scanner does not support UPC-E (the leading zero and the check digit (last digit) are not transmitted when a UPC-E is scanned).
To enable UPC-E support for the scanner, you will be required to scan the two codes below. To do so, print this browser page, and then scan the codes from the printed page.
Disabling UPC-E Support
To disable UPC-E support for the scanner (in which the leading zero and the check digit (last digit) are not transmitted when a UPC-E is scanned), you will be required to scan the two codes below. To do so, print this browser page, and then scan the codes from the printed page.

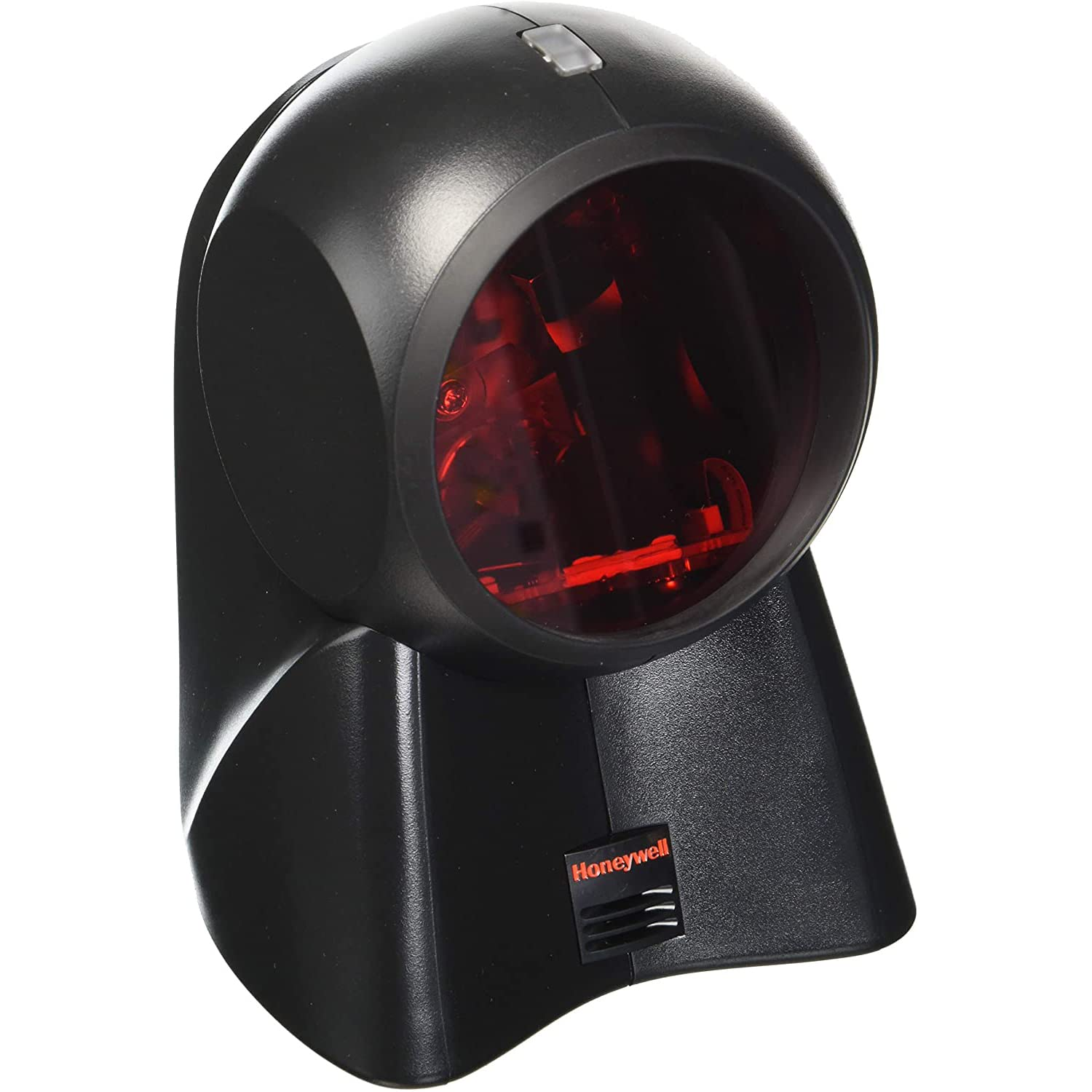

Honeywell® Orbit 7120 Hands-Free Barcode Scanner
The Honeywell® Orbit hands-free barcode scanner scans linear barcodes of products. The scanner can also be used to scan identification badges with linear barcodes.
(Image courtesy of Honeywell®)
Installing
Plug the USB cable into a USB port on the touchscreen or USB hub. Warning! Do not plug the USB cable into the printer!
Enabling UPC-E Support
The default configuration of the Honeywell® Orbit 7120 barcode scanner does not support UPC-E (the leading zero and the check digit (last digit) are not transmitted when a UPC-E is scanned).
To enable UPC-E support for the scanner, you will be required to scan the two codes below. To do so, print this browser page, and then scan the codes from the printed page.
Transmit Leading Zero:
Transmit Check Digit:
Disabling UPC-E Support
To disable UPC-E support for the scanner (in which the leading zero and the check digit (last digit) are not transmitted when a UPC-E is scanned), you will be required to scan the two codes below. To do so, print this browser page, and then scan the codes from the printed page.
Do Not Transmit Leading Zero:
Do Not Transmit Check Digit:
Reset to Default Configuration
To reset the scanner to its default configuration, you will be required to scan the code below. To do so, print this browser page, and then scan the code from the printed page.

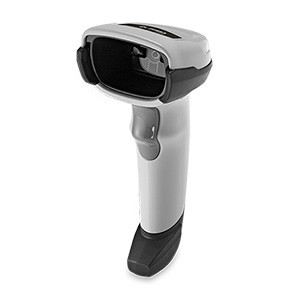

The Zebra® Barcode Scanner
The Zebra barcode scanner scans linear barcodes of products. The scanner can also be used to scan identification badges for badges with linear barcodes.
(Image courtesy of Zebra Technologies Corp)
Installing
Plug the USB cable into a USB port on the touchscreen or USB hub. Warning! Do not plug the USB cable into the printer!
Configuring Zebra Barcode Scanner
The default configuration of the Zebra® DS2200 series barcode scanner does not automatically add the enter key (i.e., carriage return/line feed) after scanning a barcode.
To configure the scanner so that it automatically adds the enter key after a scanning a barcode, you will be required to scan the code below. To do so, print this browser page, and then scan the code from the printed page.
Note that the above code is also in the user guide that comes with the barcode scanner, and can be scanned from there. The user guide can also be downloaded from DS2200 series scanner page on the Zebra site.
FAQs and Troubleshooting: Barcode Scanning
The barcode scanning is not working; nothing happens?
For an external barcode scanner, confirm the scanner plugs are connected. Ensure the USB cable is connected to the display screen. Do not connect the USB cable to the printer.
Our product isn’t scanning; it says product not found?
In Touch Admin, select POS Settings > Products. Locate the product, click its Edit button, and confirm the barcode number in the Barcode field is entered and is accurate.
Our product is scanning at the wrong price or shows no price?
In Touch Admin, select POS Settings > Price Book. Locate the product and confirm the price is accurate. For more information, see Editing Price of an Existing Menu Item, Product or Service.
Can a scanner be plugged into a printer rather than the display screen?
No. The scanner cannot be plugged into the printer.
Can I use a scanner not purchased from MealSuite?
You can test if a scanner is compatible by connecting it to the display screen (not the printer) and scanning a product or an identification badge with a linear barcode. If text/numbers appear onscreen, then the scanner is compatible.
Note that If testing the scanner on a self-service kiosk (SSK), then prior to doing so please contact MealSuite Support and have them access the configuration for the SSK and select the barcode_and_select_on_screen value for the How should items be added to the cart? field.
