SUNMI® L3

Kevin U
  • Updated

About the SUNMI® L3

The SUNMI® L3 is a handheld Android terminal for use for use with the MealSuite POS and the Touch app.

Pre-Shipping Steps

Prior to the SUNMI L3 being shipped, complete the following installation and configuration steps.

Initial Android Setup

Complete the initial Android setup steps below prior to enrolling the device in Scalefusion.

  1. Power on the device and wait for the boot screen.
  2. Select the language and region.
  3. Connect to Wi-Fi.
  4. Sign in to the Google account or skip sign-in, as policy requires.
  5. Set the screen lock, date, and time zone. (how?)
  6. Turn on developer options and USB debugging only if the support process requires it. (I think this has to be one or other rather than an option, and maybe in a different section because at this stage we're just setting it up)
  7. Install available system updates.

Enroll Device in Scalefusion

Enroll the device in Scalefusion:

  1. Install the Scalefusion agent. (Is this obvious or should more steps be here?)
  2. Enter the enrollment code or scan the QR code in the Scalefusion dashboard. (should this be more steps? is there something about tapping the home screen 6 times or something first?)
  3. The Permissions screen appears. Enable all the permissions except of the Disable Assist App permission. For each permission that is enabled, the Notification Access screen appears. Enable Scalefusion to send notifications for each permission. (I added this step).
  4. Assign the device to the correct group and device profile. (how?)
  5. Confirm the device appears on the Scalefusion dashboard.

Kiosk and Lock Mode

  1. In the Scalefusion dashboard, open the POS device profile. Does one need to open the POS device profile? What about the Touch app?
  2. Enable kiosk and lock mode (I need to see this) and allow only MealSuite POS and MealSuite Touch.
  3. Set the exit password and who (is "who" certain user profiles?) can leave kiosk mode.
  4. Push the profile and confirm it applies (how?).

POS and Touch App Installation

  1. Install MealSuite POS (Is this obvious or should more steps be here?).
  2. Install MealSuite Touch (Is this obvious or should more steps be here?)
  3. Launch the POS and switch to the shipping facility. Confirm the POS is connected to that facility with the latest POS version (see Locating Version Number of the POS System).
  4. Launch the Touch app and switch to the shipping facility to confirm the Touch app is connected to that facility with the latest Touch app version (see Locating Version Number of the Touch app).  (I added this step).

Confirm the Following

  • Wi-Fi connectivity.
  • Device appears in the Scalefusion dashboard with the correct profile and restrictions.

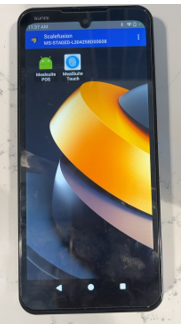

  • MealSuite POS and MealSuite Touch are installed and visible, and each application launches and starts as expected.
  • Kiosk or lock mode blocks access to other apps.

Client Steps

  1. Power on the device.
  2. Tap the MealSuite POS shortcut to launch the POS. The POS will need to be activated with a registration code; see Activating a New POS Device (i.e., Workstation). (I added the step about registration)
  3. Tap the MealSuite Touch shortcut to launch the Touch app. See Logging into the Touch App.
