Activating a Sensor

Your MealSuite temperature sensors are preconfigured to operate based on previously provided preferences.

After you install a sensor, then you must activate the sensor in so that the sensor can begin to send real-time data to the MealSuite system.

1. In your Core account, from the left navigation sidebar, select HACCP > Fridge/Freezer Sensors. The Fridge & Freezer Sensors screen appears.



2. Select the Paused tab.



3. For a sensor to be activated, click its Activate icon in the Actions column.



   Alternatively, you can select the check boxes of the sensor(s) to be activated (1), and then click the Activate Sensors button at the top of the screen (2).



4. Select the Active Sensors tab to see the active sensors.



Viewing a Current Temperature Reading

From the left navigation sidebar, select HACCP > Fridge/Freezer Sensors. The Fridge & Freezer Sensors screen appears (screenshot below), listing your current sensors with the Temperature column listing the temperature of each. The Last Updated column indicates when the last reading was received in minutes.

Viewing Battery Level and Signal Strength of a Temperature Sensor

From the left navigation sidebar, select HACCP > Fridge/Freezer Sensors. The Fridge & Freezer Sensors screen appears (screenshot below), listing your current sensors with the Battery column listing the battery strength of each sensor and the Signal column listing the signal strength of each sensor.




Setting Up an Offline Sensor Alert

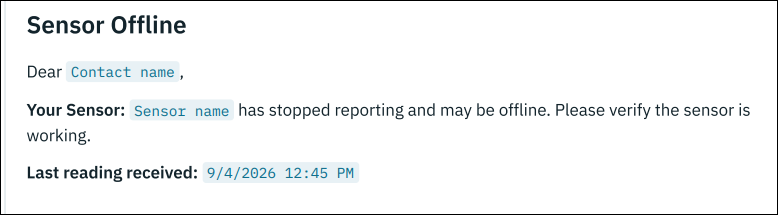

If the temperature sensor goes offline, then an alert can be triggered. The alert will be an email sent to all contacts with an email address (the alert is not sent via SMS or a call). The email is sent once (i.e., does not repeat). The email that is triggered is formatted as per the screenshot below:



To set up an offline sensor alert:

1. From the left navigation sidebar, select HACCP > Fridge/Freezer Sensors. The Fridge & Freezer Sensors screen appears,

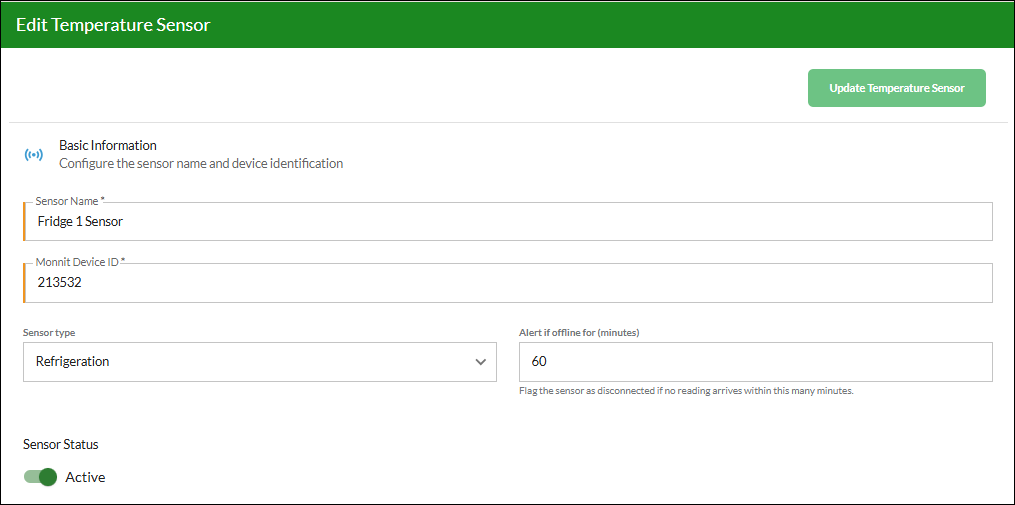

2. For the sensor that you want to create an offline alert for, click its pencil icon in the Actions column (first screenshot below). The Edit Temperature Sensor slide-out panel appears (second screenshot below).





3. In the Alert if offline for (minutes) field, enter the number of minutes that will pass between the sensor going offline and when the email alert is triggered.

4. Click the Update Temperature Sensor button to apply your changes.

Temperature Alerts

You can create alert conditions to notify select users if the temperature falls below or rises above a certain temperature for a set amount of time. For example, when your freezer is above 40°F for more than 60 seconds, an alert is triggered. When an alert is triggered, it is cleared only when the issue that triggered the alert is resolved.

Creating a Temperature Alert Condition

To create a temperature alert condition, complete the following steps:

1. From the left navigation sidebar, select HACCP > Automated Alerts. The Automated Alert screen appears with the Alert Conditions tab automatically selected.



2. Click the Add an Alert Condition button at the top of the screen. The Create Alert Condition slide-out panel appears.



3. Enter or select the following:
   • Name - name of the alert condition. For example "Above 40 F for 60 seconds"
   • Condition - select (>) Greater Than or (<) Less Than.
   • Temperature - select the temperature threshold.
   • Alert After (Seconds) - select the length of time in seconds between when the alert conditions are met and when the alert is to be triggered.
   • Repeat alert (minutes) - enter the number of minutes that will pass before the alert is sent out again. Alerts repeat at this cadence until the issue is resolved (i.e., the alert is cleared after the issue is resolved). Set to 0 to not have it repeat (i.e., the alert is sent once and not again).
   • Sensors - Select the sensors to generate the alert
   • Alert Contacts - select the contacts to receive the alert notifications.

4. Click the Create Alert Condition button. You are returned to the Alert Conditions tab, where the newly-added condition is listed.



Modifying a Temperature Alert Condition

To modify an existing temperature alert condition, complete the following steps:

1. From the left navigation sidebar, select HACCP > Automated Alerts. The Automated Alert screen appears with the Alert Conditions tab automatically selected.



2. For the alert condition you want to modify, click its gear icon in the Actions column and select Edit. The Update Alert Condition slide-out panel appears.



3. Update the following as needed:
   • Name - name of the alert condition. For example "Above 40 F for 60 seconds"
   • Condition - select (>) Greater Than or (<) Less Than.
   • Temperature - select the temperature threshold.
   • Alert After (Seconds) - select the length of time in seconds between when the alert conditions are met and when the alert is to be triggered.
   • Repeat alert (minutes) - enter the number of minutes that will pass before the alert is sent out again. Alerts repeat at this cadence until the issue is resolved (i.e., the alert is cleared after the issue is resolved). Set to 0 to not have it repeat (i.e., the alert is sent once and not again).
   • Sensors - Select the sensors to generate the alert
   • Alert Contacts - select the contacts to receive the alert notifications.

4. Click the Update Alert Condition button to apply your changes.

Deleting a Temperature Alert Condition

To delete a temperature alert condition, complete the following steps:

1. From the left navigation sidebar, select HACCP > Automated Alerts. The Automated Alert screen appears with the Alert Conditions tab automatically selected.



2. For the alert condition you want to delete, click its gear icon in the Actions column and select Delete. The alert condition is deleted.

Viewing Active Alerts of Temperature Sensor

From the left navigation sidebar, select HACCP > Fridge/Freezer Sensors. The Fridge & Freezer Sensors screen appears, listing your current sensors and any existing alerts.

Note: Alerts from temperature sensors can also be viewed on the HACCP Compliance Dashboard. See The HACCP Compliance Dashboard for more information.

Contacts for Alerts

• Creating a New Contact for Alerts
• Updating a Contact for Alerts
• Deleting a Contact from Alerts

Creating a New Contact for Alerts

To create a new contact to receive alerts, complete the following steps:

1. From the left navigation sidebar, select HACCP > Automated Alerts. The Automated Alert screen appears.

2. Click the Alert Contacts tab.



3. Click the Add a Contact button at the top right of the screen. The Create Alert Contact slide-out panel appears.



4. Enter or select the following:
   • First name
   • Last name
   • Phone country code
   • Phone number - enter a 10 digit phone number without spaces or dashes.
   • Ext (if any)
5. From the Alert preference drop-down, select the message types to use when an alert is triggered:
   • Email
   • SMS (text message)
   • Call - the recipient will receive an auto-generated voice message.
6. Click the Create Alert Contact button. You are returned to the Alert Contacts tab where the newly-added contact listed.

Updating a Contact for Alerts

To update an existing contact who receives alerts, complete the following steps:

1. From the left navigation sidebar, select HACCP > Automated Alerts. The Automated Alert screen appears.
2. Click the Alert Contacts tab.
3. For the alert contact you want to modify, click its gear icon in the Actions column and select Edit. The Update Alert Contact slide-out panel appears.



4. Update the contact information as needed.
5. Click the Update Alert Contact button to apply your changes.

Deleting a Contact from Alerts

To delete an existing contact who receives alerts, complete the following steps:

1. From the left navigation sidebar, select HACCP > Automated Alerts. The Automated Alert screen appears.
2. Click the Alert Contacts tab.
3. For the alert contact you want to delete, click its gear icon in the Actions column and select Delete. The alert contact is deleted.

Temperature Sensor Reports

• Summarized Report for Temperature Sensors
• Detailed History Report for a Temperature Sensor
• Daily Summary Report for a Temperature Sensor

Summarized Report for Temperature Sensors

The summarized report captures the temperatures logged by one or more wireless temperature sensors at specific times in a day across a selected date range. The report is generated in a .csv file that can be opened with Excel®. To generate a summarized report, complete the following steps:

1. From the left navigation sidebar, select HACCP > Fridge/Freezer Sensors. The Fridge & Freezer Sensors screen appears.

2. At the top of the screen, click the Generate Summarized Report button. The Report Options window appears.



3. Select the date range via the From and To fields. Note that the maximum range is seven days.
4. In the Select sensors section, select the sensors to include in the report.
5. In the Select interval time(s) section, enter up to four interval times. The report will include the recorded time that occurred within 10 minutes of each interval time that you enter.
6. Click the Go button and the report is downloaded as an .csv file that you can open with Excel®.



Detailed History Report for a Temperature Sensor

The detailed history report for a wireless temperature sensor generates an onscreen graph of temperatures logged by a sensor every 10 minutes for a selected date range. The data can also be exported to a .csv file that can be opened with Excel®. To generate a detailed history report, complete the following steps:

1. From the left navigation sidebar, select HACCP > Fridge/Freezer Sensors. The Fridge & Freezer Sensors screen appears.
2. For the sensor whose report you want to view, click its eye icon in the View column (first screenshot below). The sensor screen appears (second screenshot below).





3. Scroll down the screen to the Detailed History tab.



4. By default, the date range is the last 24 hours set in the From and To fields. Enter a different date range as needed. The maximum range that can be entered is three days. Note that if you enter a date in the From field that surpasses the three-day range as per what is entered in the To field, then the system will automatically adjust the To field to 72 hours more than what is entered in the From field.



5. Upon selecting a date range, the onscreen graph refreshes accordingly, displaying the temperatures logged every 10 minutes within the selected date range.

6. To export the data to an Excel® file, click the Export to Excel button at the top of the screen (first screenshot below). The file is downloaded to your computer for you to open in Excel (second screenshot below).




Daily Summary Report for a Temperature Sensor

The daily summary report for a temperature sensor generates on onscreen graph of the maximum, average and minimum temperatures logged by a sensor for each date in a selected date range. To generate a daily summary report, complete the following steps:

1. From the left navigation sidebar, select HACCP > Fridge/Freezer Sensors. The Fridge & Freezer Sensors screen appears.

2. For the sensor whose report you want to view, click its eye icon in the View column (first screenshot below). The sensor screen appears (second screenshot below).





3. Scroll down the screen and click the Daily Summary tab.



4. By default, the date range is the last six days as set in the From and To fields. Enter a different date range as needed. The maximum range that can be entered is two weeks. Note that if you enter a date in the From field that surpasses the two-week range as per what is entered in the To field, then the system automatically adjusts the To field to two weeks more than what is entered in the From field.



5. Upon selecting a date range, the onscreen graph refreshes accordingly, displaying the maximum, average and minimum temperatures logged by a sensor for each date in the selected date range.

Managing Sensors

Viewing Sensor Details

The details of a sensor include its current temperature reading, battery level, signal strength and its connection status (i.e., sensor health) with Monnit. To view the sensor details, complete the following steps:

1. From the left navigation sidebar, select HACCP > Fridge/Freezer Sensors. The Fridge & Freezer Sensors screen appears.


2. For the sensor that you want to view, click its eye icon in the Actions column (first screenshot below). The sensor screen appears (second screenshot below), displaying its details and sensor health.





Pausing a Sensor

If it is necessary to pause a currently-active sensor, then you can do so by completing the following steps:

1. From the left navigation sidebar, select HACCP > Fridge/Freezer Sensors. The Fridge & Freezer Sensors screen appears.

2. For the sensor to be paused, click its pause icon in the Actions column.



Deleting a Sensor

If needed to delete a sensor from the Core system, complete the following steps:

1. From the left navigation sidebar, select HACCP > Fridge/Freezer Sensors. The Fridge & Freezer Sensors screen appears.


2. For the sensor that you want to delete, click its eye icon in the Actions column (first screenshot below). The sensor screen appears (second screenshot below).






3. Click the Delete button. The sensor is removed from the Core system.

Editing Name of a Sensor

To edit the name of a sensor, complete the following steps:

1. From the left navigation sidebar, select HACCP > Fridge/Freezer Sensors. The Fridge & Freezer Sensors screen appears.

2. Click the Active Sensors tab to display the current sensors.

3. For the sensor that you want to open, click its pencil icon in the Actions column (first screenshot below). The Edit Temperature Sensor slide-out panel appears (second screenshot below).





4. From the Sensor Name field, you can edit the name. From the Sensor Type field, you can select what type of area the sensor is monitoring (e.g., Refrigeration, Freezer).

5. Click the Update Temperature Sensor button to apply your changes.
