Displaying Nutrients on Printed AO and IO Tickets

Kevin U
  • Updated

About Displaying Nutrients on Printed Order Tickets

It can be enabled that nutrient values be displayed for ordered items on printed advanced order (AO) and instant order (IO) tickets. The nutrients to display on a ticket are taken from a nutrient template configured in the Touch Admin software. There are two types of nutrient templates that can be configured:

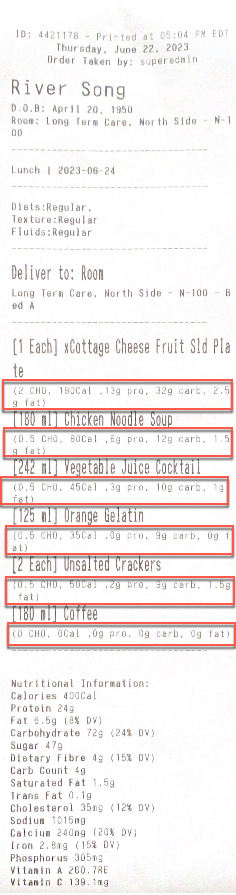

  • Order Nutrient Analyzer Template - When an order nutrient analyzer template is applied to printed tickets, each ordered item displays the nutrient values below the item. Up to five nutrients can be included in the template.

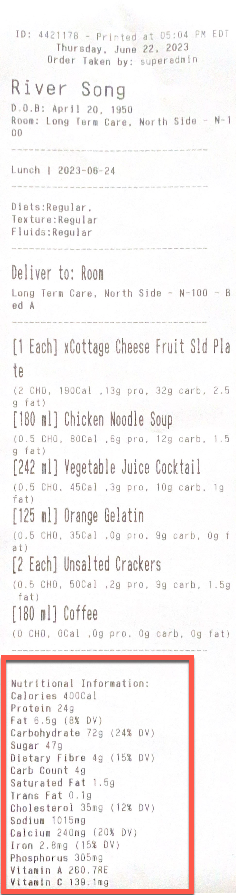

  • Nutrient Receipt Template - When a nutrient receipt template is applied to printed tickets, the total value of each nutrient is displayed at the bottom of the ticket. Up to 16 nutrients can be included  in the template.



Applying an Order Nutrient Analyzer Template to Printed Tickets

Create the Order Nutrient Analyzer Template

To create the order nutrient analyzer template, complete the following steps:

  1. In Touch Admin, select Nutrient Templates from the left navigation pane. The Nutrient Receipt Templates screen appears.
  2. Click the Create Order Nutrient Analyzer Template button. The Create Template screen appears.
  3. In the Template Name field, enter a name for the nutrient template.
  4. Select the check boxes of the five nutrients to be in the template. The list of nutrients is as follows:
    • Calories
    • Carbohydrate
    • Carb Count
    • Protein
    • Fat
    • Sodium
    • Phosphorus
    • Potassium
  5. To change the sort order of how the nutrients will be displayed, click and hold the = symbols of the nutrients and drag them to the desired location in the sort order.
  6. Click the Save Template button to apply your changes.

Apply the Order Nutrient Analyzer Template to Printed Tickets

With an order nutrient analyzer template created, complete the following steps to apply it to the printed AO and/or IO tickets:

  1. In Touch Admin, click KMS Locations. The KMS Locations screen appears.

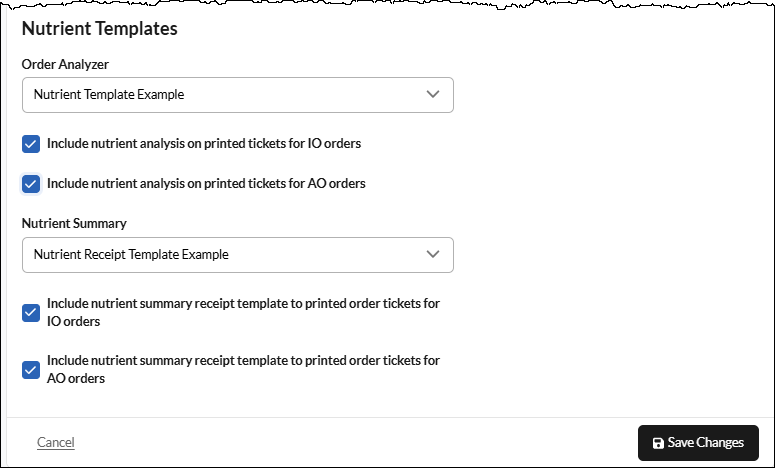

  2. Click the Edit button for the KMS location. Scroll to the Nutrient Templates section.


  3. From the Order Analyzer field, select the order nutrient analyzer template to apply.
  4. To apply the template to IO tickets, select the Include nutrient analysis on printed tickets for IO orders check box.
  5. To apply the template to AO tickets, select the Include nutrient analysis on printed tickets for AO orders check box.
  6. Click the Update button to apply your changes.

Applying a Nutrient Receipt Template to Printed Tickets

Create the Nutrient Receipt Template

To create the nutrient receipt template, complete the following steps:

  1. In Touch Admin, select Nutrient Templates from the left navigation pane. The Nutrient Receipt Templates screen appears.
  2. Click the Create Receipt Template button. The Create Template screen appears.
  3. In the Template Name field, enter a name for the nutrient template.
  4. Select the Show check boxes of the nutrients to be in the template. The list of nutrients is as follows:
    • Macronutrients
      • Calories
      • Protein
      • Fat
      • Carbohydrate
      • Sugar
      • Dietary Fibre
      • Carb Count
    • Fatty Acids
      • Saturated Fat
      • Trans Fat
      • Cholesterol
    • Minerals
      • Sodium
      • Calcium
      • Iron
      • Phosphorus
    • Vitamins
      • Vitamin A
      • Vitamin C
  5. To change the sort order of how the nutrients will be displayed, click and hold the = symbols of the nutrients and drag them to the desired location in the sort order.
  6. Click the Save Template button to apply your changes.

Apply the Nutrient Receipt Template to Printed Tickets

With a nutrient receipt template created, complete the following steps to apply it to the printed tickets:

  1. In Touch Admin, click KMS Locations. The KMS Locations screen appears.
  2. Click the Edit button for the KMS location. Scroll to the Nutrient Templates section.


  3. From the Nutrient Summary field, select the nutrient receipt template to apply.
  4. To apply the template to IO tickets, select the Include nutrient summary receipt template to printed order tickets for IO orders check box.
  5. To apply the template to AO tickets, select the Include nutrient summary receipt template to printed order tickets for AO orders.
  6. Click the Update button to apply your changes.
